These are the parts the EE Shop keeps in stock to sell. It is limited to selected common ICs and discrete components used in undergraduate labs.

We accept only NCard payment at this time.

Prices are subject to change; we do not update listings daily.

Circuits

Analog Circuits

Manual	Item	Price Per
DAC0808LCN	Digital to Analog	$2.50
DAC-08	Digital to Analog	$2.50
LM339	Quad Open-Collector Comparator	$0.50
LM7805	5 V Regulator (TO-220)	$0.50
LD1117	3.3 V Regulator (TO-220)	$0.50
LM393	Dual Open-Collector Comparator	$0.50
LM318	Fast Op Amp	$1.25
LM324	Quad Low-Power Op Amp	$0.50
TL082	Dual JFET-Input Op Amp	$0.75
TL084	Quad JFET-Input Op Amp	$0.75
LM348	Quad 741 Op Amp	$0.50
LM358	Dual Low-Power Op Amp	$0.50
LM386	Audio Power Amp	$0.50
LM555	Timer / Multivibrator	$0.50
LM78T05	3A 5 V Regulator (TO-220)	$0.50
LM78L10	Low Current 10 V Regulator (TO-220)	$0.75
LM350	3A Adjustable Regulator (TO-220)	$1.25
ICL8038	VCO/Waveform Generator	$3.25
LM741	Op Amp	$0.75
MAX232	RS232 Level Transceiver	$2.00
AD633	Multiplier	$9.00
SN754410	H-Bridge (1A, 4.5V-36V)	$3.00
TMP36GT9Z	IC Temp Sensor	$2.00

Logic Circuits

Manual	Item	Price Per
CD4000	Dual 3-in NOR + Inverter	$0.50
CD4001	Quad 2-in NOR	$0.50
CD4002	Dual 4-in NOR	$0.50
CD4007	Dual Complementary Pair	$0.50
CD4011	Quad 2-in NAND	$0.50
CD4012	Dual 4-in NAND	$0.50
CD4013	Dual D Flip Flop	$0.50
CD4017	Decade Counter/Divider	$0.50
CD4018	Divide-By-N Counter	$0.50
CD4023	Triple 3-in NAND	$0.50
CD4025	Triple 3-in NOR	$0.50
CD4026	Decade Counter	$0.50
CD4027	Dual JK Flipflop	$0.50
CD4044	Quad 3-State NAND R/S Latches	$0.50
CD4046	Phase Lock Loop	$0.50
CD4047	Monostable Multivibrator	$0.50
CD4049	Hex Inverter	$0.50
CD4050	Hex Buffer	$0.50
CD4051	Single 8 Channel Mux	$0.50
CD4052	Differential 4 Channel Mux	$0.50
CD4053	Triple 2 Channel Mux.	$0.50
CD4060	Ripple Counter	$0.50
CD4066	Quad Switch	$0.50
CD4069	Hex Inverter	$0.50
CD4070	Quad XOR	$0.50
CD4071	Quad 2-in OR	$0.50
CD4072	Dual 4-in OR	$0.50
CD4073	Triple 3-in AND	$0.50
CD4075	Triple 3-in OR	$0.50
CD4077	Quad XNOR	$0.50
CD4078	8 Input NOR/OR	$0.50
CD4081	Quad 2-in AND	$0.50
CD4082	Dual 4-in AND	$0.50
CD4093	Quad 2-in NAND Schmitt Trigger	$0.50
CD40174	Hex D Flipflop	$0.50
MC14503	Hex 3-State Buffer	$0.50
74LS00	Quad 2-in NAND	$0.50
74LS01	Quad 2 -in NAND	$0.50
74LS02	Quad 2-in NOR	$0.50
74LS04	Hex Inverter	$0.50
74LS05	Hex Open-Collector Inverter	$0.50
74LS08	Quad 2-in AND	$0.50
74LS10	Triple 3-in NAND	$0.50
74LS11	Triple 3-in AND	$0.50
74HCT14	Hex Schmitt Trigger Inverter	$0.50
74LS20	Dual 4-in NAND	$0.50
74LS21	Dual 4-in AND	$0.50
7425	Dual 4-in NOR	$0.50
74LS27	Triple 3-in NOR	$0.50
74LS28	Quad 2-in NOR	$0.50
74LS30	8-in NAND	$0.50
74LS32	Quad 2-in OR	$0.50
74LS40	Dual 4-in NAND	$0.50
74LS47	7 Seg. Disp.Driver CA	$1.25
74LS74	Dual D Flipflop	$0.50
74LS76	Duel JK Flipflop	$0.50
74LS83	Fast Adder	$0.50
74LS86	Quad XOR	$0.50
74LS92	Divide/12 (/6 & /2)	$0.50
74LS93	4 Bit Counter	$0.50
74LS107	Dual JK Flipflop	$0.50
74LS138	3-8 Decoder	$0.50
74LS139	Dual 1 of 4 Decoder	$0.50
74LS148	Priority Encoder	$0.50
74LS151	1 of 8 Data Selector	$0.50
74LS153	Dual 4-in Mux	$0.50
74LS161	Synch 4 Bit Counter	$0.50
74LS169	Sync Counter	$0.50
74LS174	Hex D Flipflop	$0.50
74LS193	Binary Up-Down Counter	$0.50
74195	Shift Register	$0.50
74HC244	Octal Buffer	$0.50
74LS245	Octal Buss Xceiver	$0.50
74LS283	4 Bit Adder	$0.50
74HCT573	Octal D Latch, 3-State output	$0.50
74HC595	8-Bit Shift Register	$0.50
74LS670	4 Bit Register	$0.50
74HC4511	7 Seg. Disp. Driver CC	$1.25
27C256	64k x 8 CMOS Eprom	$3.50
27128	16k x 8 Eprom	$3.50
TIBPAL22V10ACNT	OTP Prog. Array Logic	$3.00
GAL22V10	Reprogrammable Array Logic	$3.00
GAL16V8	Reprogrammable Array Logic	$1.00
PALCE16V8	Reprogrammable Array Logic	$1.00

Micro Printed Circuit Boards & Speciality Devices

Micro Printed Circuit Boards

Manual	Item	Info	Price Per
Arduino Uno	Micro Controller		$20.00
Raspberry Pi Zero 2W			$20.00

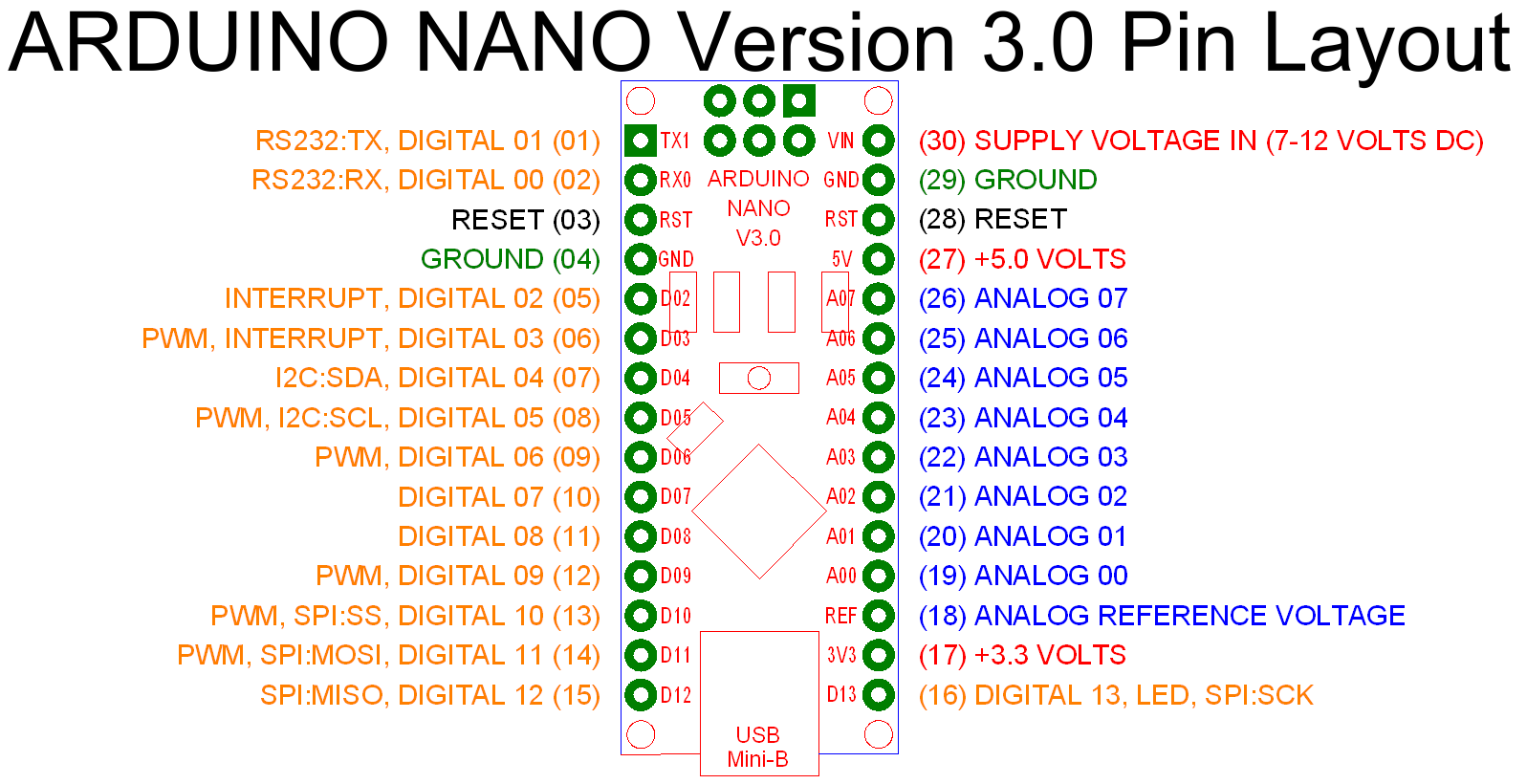

Arduino Nano		Pinout	$10.00

Specialty Devices

Manual	Item	Info	Price Per
FTDIRL	USB to Serial Adapter (PCB)		$2.50
HC-SR04	Ultrasonic Transducer		$1.50
ADXL335	Accelerometer 3-Axix +-3g	Datasheet	$2.25
MPU-6050	3 Axix Accelerometer & Gyro	Datasheet	$4.00
Battery Charging Module	5V Lithium USB 1A 18650		$0.75
IRF520	FET Module Diagram	Datasheet	$2.23
NRF24L01	2.4GHz Wireless Transceiver		$1.50
Bumper Bottom Case	For Arduino Uno		$1.00
Acrylic Case	For Arduino Uno		$3.00
Arduino Shield	Prototyping Board		$1.75
Thumb Joystick	10k with Switch button		$2.00
HC-05	Bluetooth Module		$6.00
L9190	Dual H-Bridge Module		$1.25

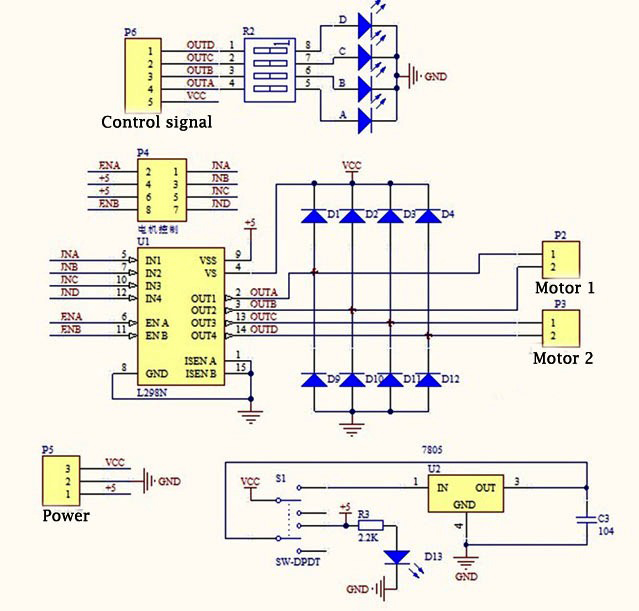

L298N	Dual 2A Dual H-Bridge Module	Example	$2.50
MCP23008	8 Bit I/O Expander		$1.00
Arduino IC w/bootloader			$4.50
Stepper Motor & ULN2003	5V 4-Phase 64 Steps 5.625 Degree	Datasheet	$2.50
Mobile Charger Battery Case	Requires 18650 battery	Datasheet	$1.50
Line Tracker		Datasheet	$0.60
MLX90614	IR Temp Module	Datasheet	$5.75
MQ-7	Carbon Monoxide Sensor	Datasheet	$1.50
LCD Serial Interface Board	1602 LCD Works with Arduino	How to use	$1.00
ESP8266	WiFi		$3.50
KY-040	Rotary Encoder	How to use	$1.00
Power Module			$2.00

Active Components

Reference

Manual	Item	Price Per
MC33064P-5	Low Voltage Reset	$0.50
LM336Z-5.0	Precision 5V Reference	$1.00

Diodes

Manual	Item	Price Per
1N5225	3.0V Zener Diode	$0.15
1N5256	3.3V Zener Diode	$0.15
1N747	3.6V Zener Diode	$0.15
1N5228	3.9V Zener Diode	$0.15
1N749	4.3V Zener Diode	$0.15
1N5230	4.7V Zener Diode	$0.15
1N4733	5.1V Zener Diode	$0.15
1N5232	5.6V Zener Diode	$0.15
1N5233	6.0V Zener Diode	$0.15
1N4735	6.2V Zener Diode	$0.15
1N957	6.8V Zener Diode	$0.15
1N756	8.2V Zener Diode	$0.15
1N5238	8.7V Zener Diode	$0.15
1N5239	9.1V Zener Diode	$0.15
1N758	10V Zener Diode	$0.15
1N4742	12V Zener Diode	$0.15
1N5245	15V Zener Diode	$0.15
1N4746	18V Zener Diode	$0.15
1N4748	22V Zener Diode	$0.15
1N5254	27V Zener Diode	$0.15
1N5257	33V Zener Diode	$0.15
1N5259	39V Zener Diode	$0.15
1N5261	47V Zener Diode	$0.15
1N4757	51V Zener Diode	$0.15
1N4758	56V Zener Diode	$0.15
1N4760	68V Zener Diode	$0.15
1N4764	100V Zener Diode	$0.15
NTE5100A	150V Zener Diode	$0.15
1N914	Signal Diode	$0.15
1N4001	Signal Diode	$0.15
1N1188	400V, 35A Diode	$2.50
MR817	800V, 1A Power Diode	$0.15
P6KE20CA	20V TVS Diode	$0.15
T6A100L	1000V PIV, 6A	$0.75
1N5401	100V PIV, 3A	$0.15
1N5406	600V, PIV, 3A	$0.15
1N5711	Schottkey Diode	$0.15
DB103G	Diode Bridge, 1A	$0.25
KBP210G	Diode Bridge, 2A 1000PVR	$0.50
BPV23F	Photodiode PIN IR	$0.60

Transistors

Manual	Item	Price Per
MPSA13	PNP Darlington	$0.15
MPS4126	PNP	$0.15
MPS5172	NPN	$0.15
2N2222	NPN	$0.15
2N3704	NPN	$0.15
2N4401	NPN	$0.15
2N4403	PNP	$0.15
TIP48	NPN	$0.50
2N5397	N-Channel High Speed JFET	$0.25
2N5457	N-Channel JFET	$1.00
2N7000	N-Channel MOSFET	$0.25
BS170	N-Channel MOSFET	$0.15
DMT6009LCT	N-Channel MOSFET	$1.00
BS250	P-Channel MOSFET	$.025
VP2106	P-Channel MOSFET	$0.45
2N3055	NPN Power Transistor	$0.75
D44H11	NPN Power Transistor	$0.50
D45H11	PNP Power Transistor	$0.50
IRFZ34N	N-Channel MOSFET 26A	$1.00
IRF840	N-Channel Power FET	$1.00
IRF9520	P-Channel Power FET	$0.60
MD1129	NPN Matched Pair	$0.75
MJE13009	NPN Fast, High Voltage/Current	$0.50
2SC2527	NPN Fast, High Voltage/Current	$0.50
ST13009	NPN Fast, High Voltage/Current	$0.50
2N2060	NPN Dual Differential Amp	$1.00
BTA208-600E	Triac 600V, 8A	$0.50
TYN608	SCR 8A	$0.50

LEDs

Manual	Item	Price Per
LEDs	Red, Green, Blue, Yellow, White, Org, UV, IR	$0.25
LEDs Jumbo	Red, Green, Yellow, White	$0.25
LED White smd	100 Lumen, Super Bright 1 watt SMD	$0.75
RGB LED	CC, 4-pin	$0.25
RGB LED	CA, 4-pin	$0.25
Laser Diode	5mw, 635nm, 3V, 40mA	$2.50
Bargraph LED	Multicolor array	$0.50
BPV23F	IR PIN Photodiode	$0.60
IR Phototransistor	940nm, matches IR LED's	$0.25
LED Mounts	Panel mount, black round	$0.10
LED Flashlight	Key Chain Flashlight	$1.50

Displays

Manual	Item	Info	Price Per
LSD5061-11	7 Seg. Display (CA) (Red)		$1.25
LSD5112-20	7 Seg. Display Dual (CC)		$1.00
LSD5122-20	7 Seg. Display Dual (CA)		$1.00
HDSP-521E	7 Seg. Display Dual (CA)		$1.00
HDSP-523E	7 Seg. Display Dual (CC)		$1.00
HC16102	LCD 1x16 Display (HD44780)	No Backlight	$1.00
1602A-1	LCD 2x16 Display	Has Backlight	$2.00
DKKIR/LCD	LCD 4x20		$5.00
4N25	Opto-Isolator		$0.50
H11C4	Opto-Coupler, photo,SCR Output		$0.50
HOA2001	Opto-Interrupter (Slot Style)		$1.00

Optical & Sensors

Manual	Item	Info	Price Per
NE-2 Neon Bulb	Bare Bulb		$0.25
Photoresistors	Cadmium Sulfide		$0.35
Solar Cell Flex	3 Volt @ 22mA		$4.00
SS411P	Hall Effect Sensor (TO-92-3)		$0.75
MSP-1006-ND	Piezo Film Sensor (Vibration)	LDT Series	$3.00
MSP-1007-ND	Piezo Film Sensor (Vibration, with Mass)	LDT Series	$3.25
PIR	PIR Motion Detector Module	19518-SC	$2.25
PIR	PIR Motion Detector Module	HC-SR501	$1.50
Graphic LCD	Nokia 5110 48x84 Pixel Matrix	How to use	$2.50

Passive Components

Resistors, Capacitors, Inductors

Item	Information	Price Per
Electrolytic Caps	Standard Values	$0.25
Non-Electrolytic	Standard Values	$0.10
Poteniometers	Single turn (Assorted Values)	$0.25
Poteniometers	Multi-turn (Assorted Values)	$1.00
Inductors	Standard Values	$0.50
Resistors 1/4 watt	Standard Values	$0.05
Resistors power	Less then 100 ohms	$0.50
Resistors power	100 ohms 25watt	$1.50
NTC	Thermistor 5K ohm	$0.50
RXEF010	PTC Resettable Fuse (200ma Trip)	$0.25
Resistor Kit	365 piece, 73 values, 5 each	$7.50
Capacitor Kit	90 piece, 10pf to 1000uf	$7.50
Poteniometer	100 ohm 5W	$3.50

Electromechanical Components

Switches & Hardware

Item	Information		Price Per
Switch Alternate Action	DPDT with LED		$0.35
5V DC Solid State	120AC Out		$4.50
9V DC Coil Relay	Contacts:120VAC/.5A or 24VDC/1A	MZ9HSKU	$2.00
5v Relay Module	Raspberry Pi, Ardunio Compatible		$1.50
5v 1A Relay DPDT Module			$3.25
3.3v Relay Module	Raspberry Pi, Ardunio Compatible		$3.00
Breadboard Switch			$0.25
DPDT Alt. Action	Stomp switch 6A		$4.00
Momentary Pushbutton	Breadboard or PCB Mount		$0.25
Momentary Pushbutton	Panel Mount, N.O.		$1.00
Crystals	Wide Assortment of Standard Values		$1.00
Crystal Oscillators	Some Assortments		$1.50
Keypad Matrix	4X4		$2.50
Dip Switch	8 Position		$0.75
SIP Headers	Cost is PER/PIN, (SIP=Single in Line)		$0.05
DIP Headers	Cost is PER/PIN, (DIP=Dual in Line)		$0.05
Female Headers (SIL)	Cost is PER/PIN, (SIL=Single in Line)		$0.05
Female Headers (DIL)	Cost is PER/PIN, (DIL=Dual in Line)		$0.05
Solenoid Car	Push/Pull 12V		$4.25
Solenoid	Small Lever-Action		$1.00
Solenoid	Small-Pull		$3.75
Solenoids	Kick-Type (Big)		$2.50
SG90	Servo (180 Degree)		$2.50
FS90R	Servo (Continuous)		$6.50
1.5-6VDC Motor	Small DC Motor		$0.75
2-8VDC Motor	Small DC Motor		$1.25
6-24VDC Motor	Mabuchi Motor		$4.00
6-24VDC Motor	With Tachometer/Output		$6.50
12VDC	Small Motor (3400RPM) China		$1.15
Stepper Motors (USED)	5V & 12V, 200 Steps/Turn		$5.00
Stepper Motor	5V/12V, 96 Steps/Turn		$5.00
Stepper Motor & ULN2003	5V 4-Phase 64 Steps 5.625 Degree		$2.50
Gear Motor	3V-12V 1:48		$2.25
Electret Condensor Mic.	PCB Mount (Wiring Diagram)	WM-34B	$0.35
AT-121 Piezo Speaker	Hi Impedance		$0.50
SKT1206A	Pcb Speaker (12mm)		$0.50
Speaker 40mm	8 Ohm Mylar		$1.00
Speaker 2" X 6"	8 Ohm, 5W		$1.00
Speaker 2"	Round, Metal with Plastic mount		$1.00
3.4kHZ Alarm	Murata		$1.00
Solar Cell	55mm X 32mm		$2.00
Termial Strip	12 Position Euro Style 10A 300V		$1.75
Alligator Clip Leads	10-Pack		$5.50
Alligator Clips	Single Clips Ownly		$0.25
BreadBoard Solderless	Full Length		$4.00
BreadBoard Solderless	Half Lenth		$3.50
BreadBoard Solderless	Super-Mini		$3.00
BreadBoard Solder	Full Length Double Sided Plated Holes		$3.00
BreadBoard Solder	Half Length Double Sided Plated Holes		$2.00
Prototype Solder board	Assorted Styles		Price Dependent on Size
Fans	Assorted Sizes and Voltages (AC, DC)		Price Dependent on Size

Batteries and Power Supplies

Item	Information		Price
Coin Cell Batteries	2032, plus assortment		$1.00
9V Battery			$1.00
AA Battery			$0.35
AAA Battery			$0.50
AAAA Battery			$1.25
C Battery			$1.00
D Battery			$1.50
18650 Li-ion Battery	EBL 3.7V Rechargeable	3000mAh	$5.00
9V Battery Clip			$0.25
Battery Holders	Assorted Styles		$1.25
5V .500ma	Wall Wart		$2.50
5V 1Amp	Wall Wart		$5.00
12V .500ma	Wall Wart		$1.75
12V 2Amp / 5V 2Amp	Small Brick		$5.00
5V 3Amp	AC to DC Power Supply		$11.25
12VDC, 3Amp	AC to DC Power Supply		$8.00
Fuses	Assorted Values		$1.00

Protection & Connector Components

Cables and Adapters

Item	Information		Price Per
USB to RS232			$11.50
USB A to B			$2.00
USB Male to Female			$2.50
USB to Micro USB			$1.00
USB Charger to Mini USB	Charger and USB to USB Mini Cable		$2.50
DB9 RS232	Straight and or Null		$6.00
50ohm BNC to BNC	Coaxiall Cables		$4.50
BNC to Gator Clips			$3.50
Stereo Patch Cable	3.5mm (1/8") 6' Male-Male		$1.25
SMA/M- BNC/F			$1.25
SMA/F-BNC/M			$1.75
SMB-BNC			$4.00
Stereo Extension Cable	3.5mm (1/8") 10' Male-Female		$2.50
40 Pin Jumper Cables	Male-Male, Male-Female, Female-Female	Can strip to size	$2.00
HDMI	6'		$2.25
SMA to SMA Cable	50 cm		$2.25

Connectors

Item	Information	Price Per
DB9 Male & Female	Solder-cup	$0.50
DB9 Hoods	Covers	$0.50
BNC Jacks	Chassis and PCB Mount	$2.00
BNC Plugs- 50 Ohms	Cable Crimp Mount	$1.50
BNC T's		$2.50
5 Pin Single inline header	Male	$0.50
5 Pin Single inline	Shells/Crimp Pins Female	$0.50
36 Pin Male Header	Can cut off to any size	$1.80
36 Pin Female Header	Can cut off to any size	$1.80
8, 12 Pin Single In Line	IDC Jacks	$0.25
8 Pin Dip	IC Socket	$0.10
16 Pin Dip	IC Socket	$0.15
18 Pin Dip	IC Socket	$0.15
20 Pin Dip	IC Socket	$0.20
22 Pin Dip	IC Socket	$0.25
24 Pin Dip	IC Socket	$0.25
28 Pin Dip	IC Socket	$.0.25
40 Pin Dip	IC Socket	$0.35

Tools & Supplies

Item	Information	Price Per
Needle Nose Pliers		$2.00
Wire Strippers		$4.00
Wire Cutters		$2.50
Mini Screwdriver		$1.00
Alignment Tool	For tweaking trimpots etc.	$0.25
Electrical Tape	Full roll only	$1.25
Solder 63/37	.5 oz.Wire	$1.00
Solder Paste 63/37	Syringe 3cc 25-45um 17 grams	$3.00
Desolder Wick	5 ft.	$1.50
Solder Kit	Iron, Stand, Solder, Wick	$11.50
Soldering Iron	Iron & Tip	$5.00
Soldering Iron	Temp controlled Plus Stand	$29.00
Wire Wrap Tool		$8.50
Wire Wrap Wire	Per Foot	$0.05
Super Glue	5 Gram	$0.25
Testors Plastic Model Glue	7/8 FL. OZ.	$2.25
Digital Multimeter		$9.00
Heat Sink Compound	Small Packet	$0.25
Helping Hands	Holder with Mag. glass/alligator clips	$8.50
6 Outlet Strip	Surge Protector	$6.50

Standard Values

While passive electronic components like capacitors, inductors, and resistors can be manufactured to have almost any value, in practice most are produced in standard values.

Standard values are multiples of 10, 15, 18, 22, 27, 33, 47, 51, 68, 75, 82, and 91.

So, for example, you can easily get a .47 uFd capacitor or a 220 ohm resistor. You will not likely find a .53 uFd capacitor or a .17 mH inductor.

Resistors do come in a greater variety of precision values, and can be easily combined (or replaced with inexpensive potentiometers) to obtain arbitrary values. So it's almost always better, when calculating component values for a circuit, to make the capacitor or inductor values standard, and then make the resistors be the "variable" item.

Precision

It is also important to understand how precise passive components values actually are. Standard resistors are only accurate to 5% or 10%; but where it's critical, some can be had in 1% or better accuracy. But capacitors (especially large electrolytics) are only guaranteed to be within 20% of their specified value. Likewise common inductors are typically only 10% precision.

The importance of precision depends on the application. A designer will probably use a common 220 ohm resistor to limit current in an LED panel indicator because a little difference in brightness either way is not important. In setting the gain of an instrumentation amplifier, or the pulse width in a timing circuit, the selection of precise component values may be more critical.

Ceramic Capacitors

(in pFd) 10, 22, 33, 47, 68, 100, 150, 220, 330, 470, 560
(in uFd) .001, .0022, .0033, .0047 uFd; .0068, .01, .022, .033, .047, .1, 1

Film Capacitors

(all in uFd) .001, .0015, .0047, .01, .022, .03, .047, .068, .1, .22, .33, .47

Electrolytic Capacitors

1, 2.2, 3.3, 4.7, 10, 22, 47, 100, 220, 470, 1000, 8200, 10000 uFd

Tantalum Capacitors

.1, .33, .47, 1, 2.2, 3.3, 4.7, 10, 22 uFd

Resistors

Most standard values available in 1/4 watt size. Precision "in-between" values also available. Uneven assortment of power resistors (i.e., higher than 1/2 watt) Note in the list above that we sell a boxed 365 piece kit containing 5 each of 73 standard value resistors for only $7.50.

Inductors

The Shop has fewer inductors than any other kind of component because they are relatively expensive, vary widely in price/size depending upon application, and are often avoided in modern designs for a variety of technical reasons. Most of what we have are low-current axial leaded chokes, in these values:

(microhenries) .1, .15, .47, .68, 1, 1.5, 2.2, 3.3, 4.7, 6.8, 8.2, 10, 15, 22, 33, 47, 68, 100, 120, 150, 220, 330, 470, 680, 1000
(millihenries) 10, 22, 33, 47, 68, 100.

If you need a high-current inductor, we also have toroid cores and heavy-gauge magnet wire that would permit you to "roll your own."
